Coating Thickness Meter Gauge F & NF 99 Memories Max Min Avg, Magnetic Induction Eddy Current 0~2000μm 0~80mil Non-Magnetic Non-Conductive Material Thick Measure Tester, Substrate Auto Detection

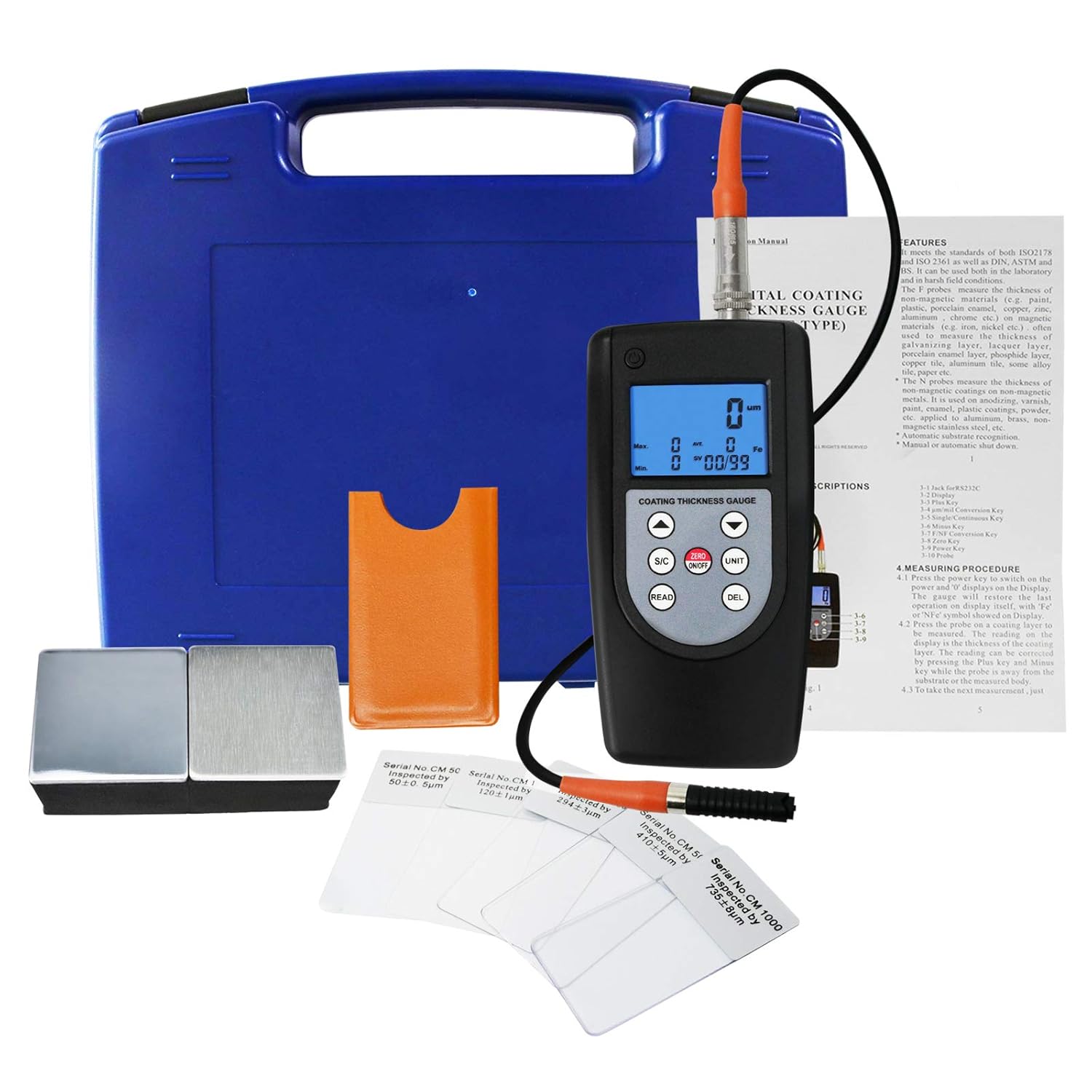

Coating thickness gauge is a kind of portable testing instrument, can take fast, intact, precise measurement of coating thickness. It can be used in both engineering field, and laboratories, as an essential instrument in material protection industry. Features:Can store the new data in 99 groupsCalculates and displays a statistical analysis of readings (Max, Min, Avg)Magnetic induction (F) and eddy current (N) measuring methodsMetric / imperial system selectableAuto memory of calibration value, auto substrate recognitionSingle and Continuous measurement modeUse Bluetooth or USB/RS-232 data output to connect with PC (Optional accessories, not included)Low battery indicatorManual or automatic power offMeets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BSSpecifications:Display: 4 digits LCD, backlitRange: 0~2000µm / 0~80milResolution: 0.1µm / 1µmAccuracy: ±1~3%n or ±2.5µm or 0.1mil (whichever is greater)Min.Radius Workpiece F Type:convex 1.5mm/concave 25mmNF Type:convex 3mm/concave 50mmMin.Measuring Area: 6mmMin.Sample Thickness: 0.3mmData memory: 99 GroupsOperating ConditionsTemperature:0~40ºCHumidity:10~90%RHPower Supply: 4 x 1.5V AAA (UM-4)BatteryDimensions: 140 x 72 x 34mmWeight: 215gSet Includes:1 x Coating Thickness Gauge (main unit)1 x Probe (F & NF Type)1 x Calibration Base (F)1 x Calibration Base (NF)5 x Calibration FoilsEnglish Operation ManualCarrying Case

• Range: 0~2000µm / 0~80mil ; Resolution: 0.1µm / 1µm ; Accuracy: ±1~3%n or ±2.5µm or 0.1mil (whichever is greater)

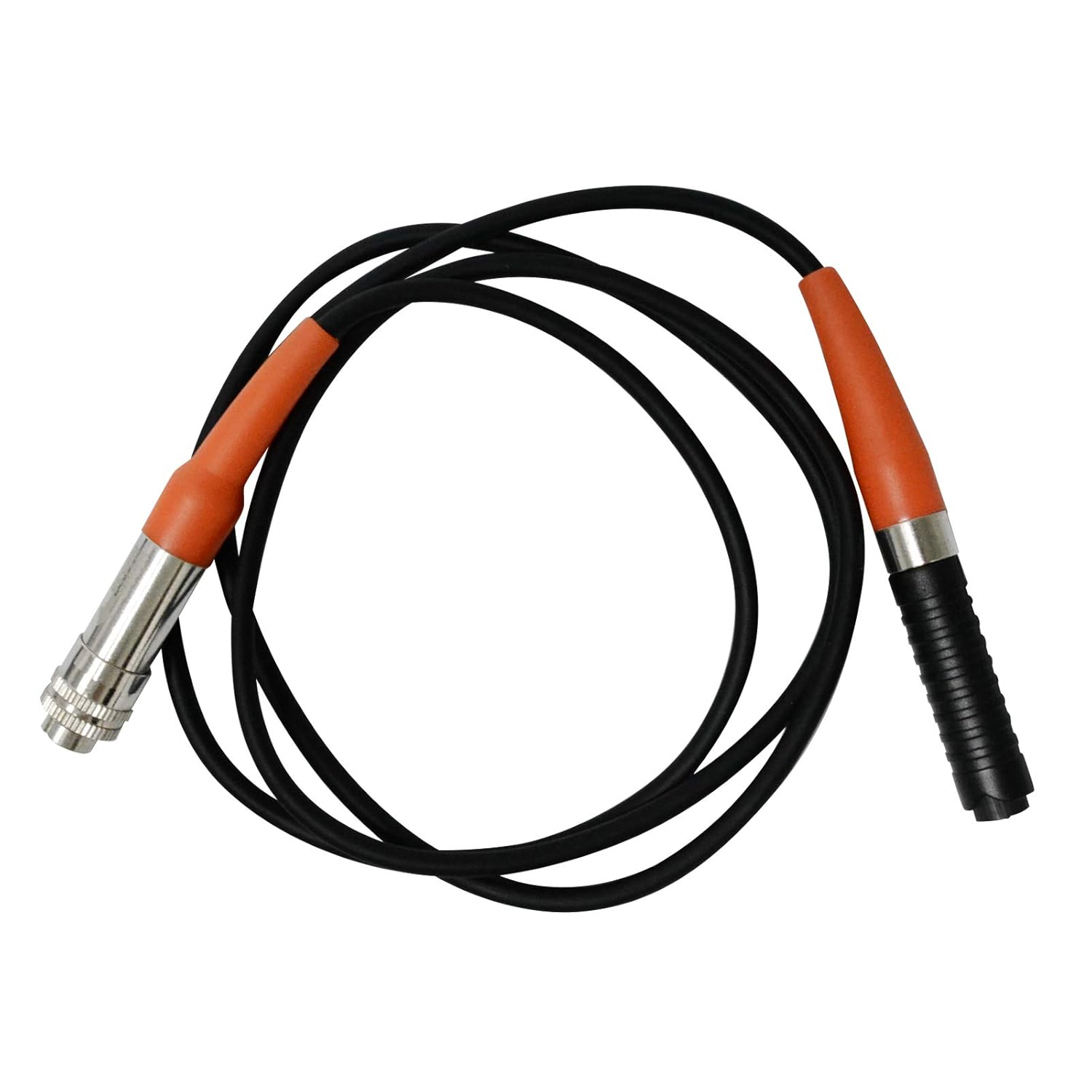

• NF & F Probe with Auto Substrate Recognition, it detects the materials and decides which probe to be used automatically. A hassle-free coating thickness gauge for both new learners and advanced users.
• F probe measures the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic materials (e.g. iron, nickel etc.). Usually used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile, paper and so on.
• N probe measures the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, nonmagnetic stainless steel, etc.
• CM1210B is the advanced version of CM1210A. CM1210B Stores 99 groups of data and calculates and displays a statistical analysis of readings (Maximum, Minimum and Average measurement result) at the same time
